RGBlink mini: the compact streaming switcher



Everybody can stream now. RGBlink mini devices are simply the best way to stream and capture from four video sources of every type, regardless of resolution, all with the minimum fuss, maximum flexibility, and excellent performance.
Cast, present, and capture like never before and boost your webinar, online college, online meeting, or any other online event, with RGBlink mini.
And control PTZ cameras and have keying possibilities with RGBlink mini+.
Allow your meetings to go to the next level with a professional edge that will impress. And be an influencer today.



What is it?

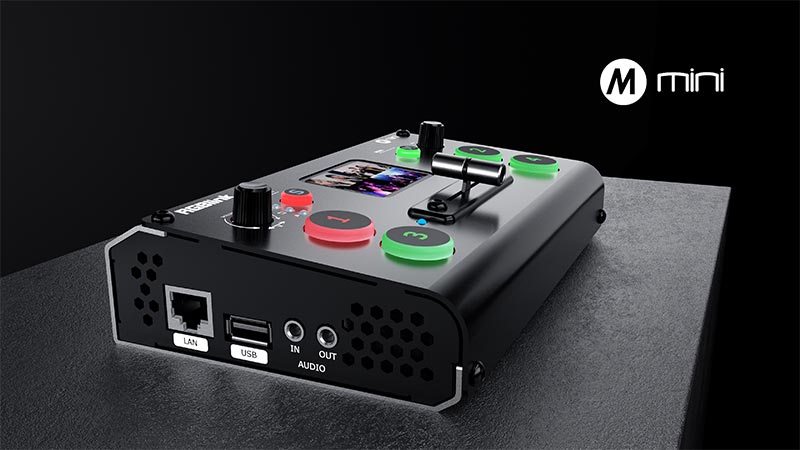

RGBlink mini is an affordable and compact all-in-one 4 channel HDMI switcher, scaler, and streamer.
Switch seamlessly between any of the four HDMI inputs and output to both HDMI (for program output or preview) or USB 3.0 (for streaming).
Onboard features include PIP, transition effects, and external audio embedding, and with the mini+ feature pack, there is support for UVC PTZ cameras and DSK. Large buttons make quick actions easy, while the provision of the T-bar allows a smooth transition between sources, whether they be cameras or graphics. Compact in size, controllable via smartphone or computer, mini goes anywhere, and with handy features like the ability to mount to standard l/4in UNC accessories, mini is at home in any studio.



fitc



What can you do with it?

  • Create video content to take your business - any business - to the world and communicate with your followers.
  • Stream to online meeting apps such as Zoom, Skype, Google Meet and allow your meetings to go to the next level with a professional edge that will impress. Or stream to online platforms such as Facebook and Youtube.
  • Use mini not only to stream but use the HDMI output to play-out live to a big screen display with the live feed or multi-view, or make a recording locally at high quality saving bandwidth and time.



For whom?

RGBlink mini is at its best when you need to show live footage from one or more cameras combined with graphics or a slideshow presentation coming from a computer screen. Think of:

  • companies doing webinars for product presentations;
  • educational institutes providing online colleges;
  • eSports broadcasters capturing the action beyond the screen as well as the online computer game itself;
  • organizers of online meetings who want to go beyond webcams and screen sharing and bring together all the video sources available.
  • etc, etc.




Prices mini and mini+

ex VAT incl VAT
RGBlink mini €247.00 €299.00
RGBlink mini+ with support of DSK and PTZ €338.00 €409.00



How to connect and control your devices?



fitc



4x HDMI inputs

  • Connect max 4 HDMI sources to the 4 HDMI inputs on the switcher. This can be a video, photo, or PTZ camera, or a computer that outputs computer graphics.
  • Audio comes embedded with the HDMI.  In addition, you can input 1 independent audio source through the Line In, such as a microphone or music from a playlist.
  • All images can have different resolutions and will be automatically scaled to the desired output resolution. The RGBlink advanced hardware-based video processing engine supports scaling and full 4:4:4 color space for optimal visual output.



Output to audio, HDMI, and USB 3.0

  • Use audio Line Out to connect to an audio mixer or another device for video and audio synchronisation. De-embed and extract audio via mini Jack.
  • Use the HDMI output to connect to a monitor and see the program output, the result of your switching. Alternatively, you can set the monitor to a multiview of 6 pictures: the 4 HDMI sources + preset + program output.
  • You can also preview the 4 HDMI sources on the built-in TFT display on the mini.
  • Use the USB 3.0 port to connect to a computer or any USB 3.0 device for capture or streaming, via OBS, to streaming platforms such Facebook, Youtube, Zoom, etc.



Control via front panel or Ethernet

  • You can control the mini/mini+ directly from the front panel, or remotely via a LAN connection with apps for laptops and mobile devices, or integrate with third party apps.
  • Connect the ethernet port of the mini/mini+ to your computer to remotely control the switcher. You can use the free OBS - Open Broadcaster Software - to control, record, capture,and livestream. OBS is downloadable from www.obsproject.com
  • The mini+  version can also use the ethernet port to control a UVC-based PTZ camera via the rotary knobs on the mini+.  This feature is not possible on the mini version. Click here for a video to show you how you can control the PTZ camera via mini+.



fitc




Key Features mini / mini+

  • Scale Convert Present.
    The RGBlink advanced hardware-based video processing engine supports scaling and full 4:4:4 color space for optimal visual output.
  • 4 HDMI inputs.
  • Built-in preview.
    Preview sources and PVW/PGM directly from the LCD display on the front panel.
  • Connect & Control.
    Control directly from the front panel, or remotely via a LAN connection with apps for laptops and mobile devices, or integrate with third party apps.
  • Stream and Capture.
    Connect mini to an internet connected laptop, or any USB 3.0 device, for capture or streaming to virtually any platform via OBS.
  • Synchronise with Audio.
    Utilise embedded or external audio and extract to audio mixers or other devices for video and audio synchronisation.
  • Crop, Position, Scale.
    Focus on exactly the video area required with pixel-to-pixel cropping, XV positioning and scaling to zoom.
  • Auto cut and manual switch (T-Bar).
    Switch between any connected video source simply by tapping on the source button in Fast mode or via the T-Bar directly from the front panel. Connect via LAN to one of the mini apps for remote functionality - CUT set fade times or transitions from anywhere.
  • 14 transition effects on T-Bar.
  • Support PIP (Picture-In-Picture). Add a Picture-in-Picture video as an overlay in one of nine PIP and PBP preset positions. Whether for closeups or companion shots, PIP allows for two videos to be output at the same time.
  • Licensed features including DSK, Logo, PTZ control (in mini+ only).
  • Compact design.


Reviews



fitc



Video reviews

Take a look at some of the many videos mini on YouTube today!


Written review




RGBlink Academy


Tutorials

In Action

  • Stream: Share your gaming, broadcast your eSports, mini allows you to take all the action to the world. Stream the experience to your favorite platform.
  • Record and Cast. Add another dimension to your Channel with multi-camera webcasting while saving production time and adding the live feel of switching.
  • Present. Whether presenting in person or to a remote audience, bring it all together with a PIP to get the message across from cameras and sources such as laptops.
  • mini+ Chroma Key in Action. Go Virtual with mini+ Chroma Key.




About RGBlink

RGBlink has their roots in AV technology. Video processing for any scale is at the heart of their operation. Unlike traditional broadcasting companies who focus on video resolutions, RGBlink has always stressed the importance of combining graphic resolutions coming from computer displays with high-end video resolutions as demanded by the broadcasting world. This is why RGBlink products are commonly used in typical audiovisual environments, such as presentations for conferencing or live events with huge video walls. The mini series product line makes video processing for any scale possible in a mobile world that demands compact devices to switch, scale and stream video and graphics.



More info




Price list


Where to buy?

Send an email to orders@mediamachine.nl to receive a list of resellers in your area. Or find a reseller in our order section.
